Type SHD-GC HIGH VISIBILITY LED Mining Cables: Advanced EPR TPU Super Heavy Duty Trailing Cables for South African Open Pit & Underground Mines – ICEA S-75-381 Compliant Safety & Visibility Solutions

Type SHD-GC HIGH VISIBILITY LED mining cables are medium-voltage trailing cables built for super heavy-duty mining operations across South Africa and global mineral regions. Featuring extra-flexible copper conductors, EPR insulation, transparent reinforced TPU jacket, and self-powered LED illumination, these cables comply fully with ICEA S-75-381 standards. They deliver reliable power transmission, active night-time visibility, continuous ground monitoring, and exceptional mechanical endurance. Proven in open-pit coal, platinum, gold, and iron ore mines, they reduce mechanical damage, cut unplanned downtime, and lower total cost of ownership by more than 30% compared to conventional CPE-jacketed alternatives.

Li Wang

7/1/202610 min read

Introduction: Redefining Mobile Power Delivery for Modern Mining

Mining operations in Southern Africa operate under some of the most demanding conditions on earth. From the open coalfields of Mpumalanga and platinum reefs of Rustenburg to deep gold mines in Gauteng and iron ore pits in the Northern Cape, production runs 24 hours a day, 365 days a year. Heavy mobile equipment—electric shovels, blast-hole drills, draglines, and mobile crushers—relies entirely on trailing power cables that must endure constant movement, bending, crushing, abrasion, temperature swings, and exposure to dust, moisture, oils, and ultraviolet radiation.

For decades, standard SHD-GC cables with black chlorinated polyethylene (CPE) jackets served this purpose. However, as mines push for higher productivity and stricter safety standards, limitations have become clear. Dark-colored cables are nearly invisible after sunset, and collisions with haul trucks or shovels cause up to 35% of unplanned electrical downtime. Repairs are costly, and lost production often exceeds the cable’s purchase price many times over.

Type SHD-GC HIGH VISIBILITY (LED) cables represent a fundamental shift in design philosophy. They are not merely electrical conductors; they function as an integrated system combining electrical transmission, mechanical protection, active safety warning, and life-cycle management. Three core advantages define their value:

From passive protection to active alert: Turning invisible electrical energy into visible light, allowing operators to see live cables and move from reactive repairs to proactive prevention.
From single-function design to full-condition adaptability: Optimized materials and layered construction deliver reliable performance even under the harshest mechanical and environmental stresses.
Safety and economy in balance: Reducing accidents, extending service life, and lowering total cost of ownership by more than 30% over the operational life.

This technology marks the next generation of trailing cables, solving the long-standing conflict between flexibility for movement and durability for heavy use, while meeting the stringent safety and productivity requirements of South African and global mining operations.

Basic Overview and Technical Specifications

Type SHD-GC HIGH VISIBILITY (LED) is classified as a medium-voltage super heavy-duty trailing cable, designed specifically for mobile mining equipment. It is manufactured and tested according to ICEA S-75-381 / NEMA WC-58, the global benchmark for mining trailing cables, and aligned with South African National Standards SANS 1520 requirements.

Rated Voltage and Standard Configuration

Voltage classes: 8 kV, 15 kV, and 25 kV three-phase systems
Standard construction: 3 × main power conductors + 2 × bare ground conductors + 1 × insulated ground check conductor + helically applied LED strip
Conductor class: Extra-flexible annealed soft copper, Class I per ICEA

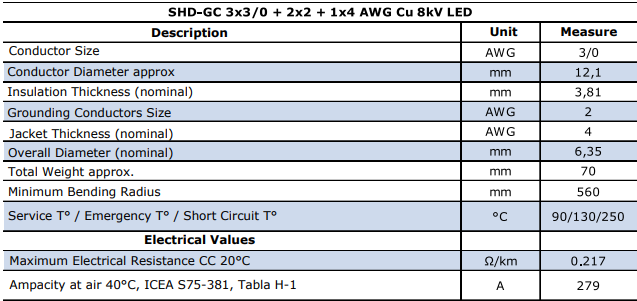

Typical Technical Data (Reference Size: 3×3/0 AWG + 2×2 AWG + 1×4 AWG / 8 kV)

These specifications ensure compatibility with existing equipment, reeling systems, and site infrastructure, while providing higher thermal and mechanical margins than standard SHD-GC cables.

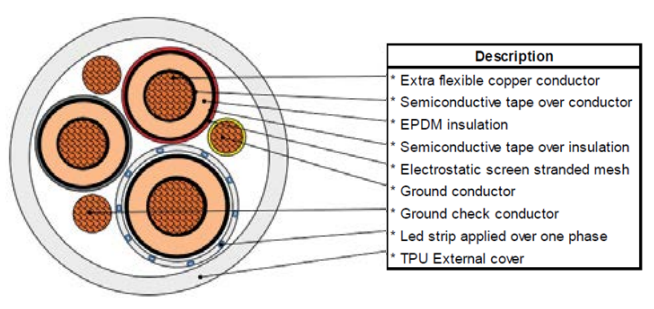

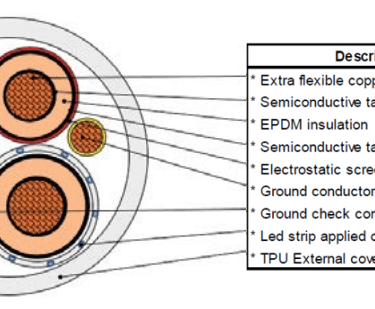

Layer-by-Layer Construction and Material Science

The performance of this cable comes from a carefully engineered sequence of materials, each chosen to fulfill a specific electrical, mechanical, or environmental function. Understanding the design explains why it outperforms conventional alternatives.

Conductor Layer

The innermost element is an extra-flexible soft copper conductor, formed by concentric stranding of hundreds of fine copper wires. This follows fundamental electrical and mechanical principles. High-purity copper offers conductivity of at least 98% IACS, minimizing energy loss and heat generation. The fine-stranded construction distributes bending stress across thousands of individual filaments, reducing fatigue and preventing fracture even after tens of thousands of flex cycles. This construction lowers the minimum bending radius, making it suitable for frequent winding and unwinding on mobile machinery.

Conductor Semiconductive Shield

Directly over the conductor lies an overlapping layer of semiconductive tape made from EVA compound filled with carbon black. Electrically, this layer equalizes the electric field around the conductor, eliminating sharp points or irregularities that could cause localized stress and partial discharge. Without this shielding, high-voltage gradients could erode insulation over time, shortening cable life. Mechanically, it provides a smooth transition between conductor and insulation, reducing interface stress during movement.

EPR Insulation

The primary insulation is Ethylene Propylene Rubber (EPR), a thermoset elastomer with a saturated molecular structure. EPR offers a dielectric strength exceeding 20 kV/mm and a stable dielectric constant, making it ideal for medium-voltage systems. Its cross-linked polymer network provides excellent elasticity, allowing it to stretch and recover without permanent deformation. EPR also resists ozone, moisture, and thermal aging, maintaining its properties at continuous temperatures up to 90 °C and short-circuit peaks of 250 °C. Unlike thermoplastics, it does not soften or flow under prolonged heat, ensuring long-term reliability.

Insulation Semiconductive Shield

Applied over the EPR insulation, this second semiconductive layer completes the uniform electric field profile. It creates a smooth boundary between insulation and the outer metallic shield, preventing air gaps where electrical discharge could initiate. It also simplifies splicing and repair, allowing clean stripping without damage to the insulation core.

Metallic Shield

A braided combination of tinned copper and colored textile fibers wraps around each insulated core. The tinned copper provides corrosion resistance and forms a low-resistance path for fault currents during short-circuit events. The textile fibers—black, white, and red—act as phase markers and improve flexibility while maintaining a minimum coverage of 60% for electromagnetic shielding. This structure ensures safety and simplifies installation and troubleshooting.

LED Visibility System

A low-power LED strip is applied helically over one phase core. The system operates on Faraday’s Law of Induction, harvesting energy directly from the alternating magnetic field generated by the current-carrying conductor. No batteries or external power supply are required; illumination activates automatically when the cable is energized and dims or turns off when de-energized. This provides immediate visual confirmation of live status and makes the cable visible up to 20 meters away in darkness, addressing the most common cause of night-time damage.

Ground Check Conductor

A dedicated insulated conductor, sized per ICEA S-75-381 standards, is included for continuous ground monitoring. Made of extra-flexible copper with yellow HDPE insulation, it allows real-time testing of the integrity of the grounding system. If ground resistance rises above safe limits, control systems can trigger alarms or shutdowns, preventing shock hazards and improving compliance with mining safety regulations.

Main Ground Conductors

Two symmetric bare copper conductors provide the primary fault path. Their parallel arrangement reduces electrical resistance while balancing the cable’s cross-section, ensuring uniform bending and reducing ovalization under pressure. In the event of a fault, they carry high current quickly to earth, limiting voltage rise and protecting personnel and equipment.

Textile Reinforcement Layer

A high-tensile polyester mesh is wound in crossed helical patterns between the inner core and outer jacket. This layer acts like the carcass of a tire, distributing tensile, compressive, and crushing forces across the entire cable length. It prevents the outer jacket from stretching excessively under tension and stops longitudinal tearing if the cable is caught or dragged over sharp edges.

Transparent TPU Outer Jacket

The outermost layer is a specially formulated thermoplastic polyurethane (TPU) jacket. It is the defining material that differentiates this design from standard SHD-GC cables. TPU offers a unique combination of elasticity and toughness: it has a tear resistance of over 80 kN/m and abrasion resistance three to five times higher than CPE. It remains flexible at temperatures as low as -40 °C and retains its hardness at temperatures up to 100 °C. The transparent formulation allows more than 75% light transmission, ensuring the LED strip remains clearly visible. It also resists mineral oils, chemicals, ozone, UV radiation, and hydrolysis, even in the humid, high-heat conditions found in South African mines.

Core Performance and Competitive Advantages

When compared to conventional SHD-GC cables with black CPE jackets, the LED-equipped TPU version offers measurable improvements in safety, durability, and operational economics.

Key Performance Characteristics

Ultra-flexible operation: Fine-stranded construction and elastic materials reduce bending radius, allowing use on compact reels and tight-radius equipment.
Active visibility: Self-powered illumination turns hidden hazards into visible obstacles, improving operator awareness.
Integrated safety monitoring: Dual ground paths plus check conductor meet the highest levels of electrical safety.
Superior mechanical endurance: TPU plus reinforcement resists impact, crushing, cutting, and abrasion far better than standard materials.
Wide environmental tolerance: Performs reliably from -40 °C to +90 °C, resisting UV, rain, mud, oils, and chemical exposure.
Flame-retardant properties: Formulated to meet FT-5 and MSHA flame tests, limiting fire spread and smoke emission.

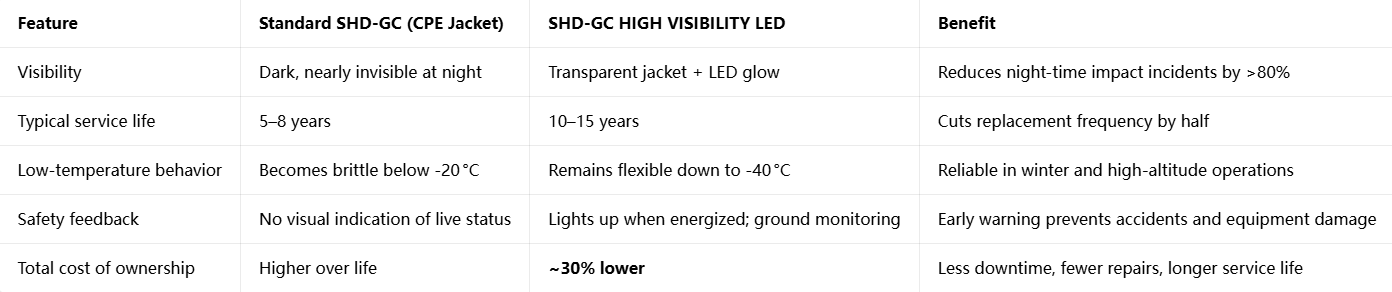

Side-by-Side Comparison

These advantages directly address the two most common problems in mining cable management: premature failure due to mechanical damage and unplanned downtime caused by visibility-related collisions.

Applications and Operating Conditions

Type SHD-GC HIGH VISIBILITY LED cables are designed for super heavy-duty service in environments where power, flexibility, and safety are equally critical.

Suitable Equipment

Electric mining shovels and draglines: High-power mobile machines requiring continuous trailing supply.
Blast-hole and exploration drills: Frequent relocation across rough terrain and exposure to rock debris.
Mobile crushers and stackers: Subject to heavy vibration and continuous movement.
Reeling systems and mobile substations: Cables that are wound, unwound, and trailed across changing ground conditions.

Installation Methods

Ground trailing over rough rock, soil, or road surfaces.
Overhead suspension across roadways and walkways.
Cable crossings and transfer points where visibility is essential.
Indoor and underground galleries, where low-light conditions increase risk.

South African Operating Environment

Mines across South Africa present unique challenges. In Mpumalanga, summer temperatures exceed 40 °C with intense UV radiation and heavy thunderstorms. In Rustenburg and the Free State, winter nights drop below freezing. In the Northern Cape, operations run in dry, dusty conditions with little rain. The TPU jacket and EPR insulation maintain consistent performance across all these climates, while the LED feature directly addresses the risks of 24-hour shift cycles, where night work accounts for more than 40% of operational hours.

Real-World Case Study: Performance in Southern African Mines

The value of this technology is best demonstrated through field experience. Two major mining operations in South Africa adopted SHD-GC HIGH VISIBILITY LED cables to improve safety and reduce costs.

Background

At a large open-pit coal mine in Mpumalanga and a platinum mine in the North West Province, maintenance records showed that 32% of unplanned electrical downtime was caused by mechanical damage to trailing cables. Standard black CPE cables were difficult to spot after dark, and collisions with haul trucks and shovels occurred at least once per week. Annual replacement and repair costs exceeded R1.2 million at each site, not including lost production.

Implementation

The mines replaced conventional cables with 15 kV SHD-GC LED cables on 12 mobile shovels and drill rigs. Installation followed the same procedures, as dimensions and electrical ratings were identical.

Measured Results

Night-time impact incidents reduced by 82% within the first six months.
Service life extended from 4 years to more than 10 years, eliminating frequent replacements.
Maintenance and replacement costs fell by approximately 40%, with a return on investment achieved in less than 2.5 years.
Zero electrical shock or ground fault incidents were recorded, thanks to continuous monitoring and visual indication.
Operators reported improved confidence in identifying cable routes and avoiding contact during low-light conditions.

This experience has established the LED-equipped design as a preferred solution for South African mines looking to align operations with the “Zero Harm” safety philosophy while improving long-term cost efficiency.

Feichun Type SHD-GC LED: Equivalent and Cost-Effective Alternative

For mines seeking reliable supply without compromising on quality, Feichun Cables offers a fully equivalent version of the Type SHD-GC HIGH VISIBILITY LED cable.

Full Compliance and Performance

Feichun cables are manufactured strictly to ICEA S-75-381 and NEMA WC-58 specifications, with the same material construction: extra-flexible copper conductors, EPR insulation, semiconductive shielding, polyester reinforcement, and UV-stabilized transparent TPU jacket. The inductive LED system operates identically, providing the same visibility and status indication. All electrical, thermal, and mechanical properties match the original design, and test reports confirm compliance with MSHA and SANS 1520 requirements.

Additional Advantages

Competitive pricing: Typically 15–25% lower than premium North American or European brands, reducing initial capital expenditure.
Shorter lead times: Standard configurations for 8 kV, 15 kV, and 25 kV are held in stock, allowing delivery within 2–4 weeks compared to 8–12 weeks for imported alternatives.
Flexible lengths: Available in standard 300 m reels or custom lengths to minimize waste and splices.
Technical support: Full documentation, installation guidelines, and post-delivery assistance are provided for projects in Southern Africa and worldwide.

Quality Assurance

Production is carried out under ISO 9001-certified quality management systems, with 100% routine testing for conductor resistance, insulation integrity, voltage withstand, and dimensional accuracy. Third-party certification ensures that every reel meets the same standards required by mining authorities across Southern Africa.

Frequently Asked Questions

Q: How does the LED light work without batteries or external power?

A: The system uses electromagnetic induction. As current flows through the conductors, it creates a changing magnetic field. A small coil inside the LED circuit harvests this energy, producing illumination only when the cable is energized. No maintenance or charging is required.

Q: Will the transparent TPU jacket turn yellow or become opaque over time?

A: The formulation includes advanced UV stabilizers and anti-oxidants. Field tests show that after five years of continuous outdoor exposure, light transmission remains above 70%, and no significant yellowing occurs. This ensures visibility remains effective throughout the cable’s service life.

Q: Can this cable be used in underground mines?

A: Yes. It meets strict flame-retardant and low-smoke requirements, making it suitable for both surface and underground applications. It complies with the same safety standards as traditional trailing cables.

Q: Is it a direct replacement for existing SHD-GC cables?

A: The overall diameter, bending radius, and electrical ratings are identical. Existing reeling systems, connectors, and switchgear can be used without modification, simplifying upgrades.

Q: How do I select the correct size?

A: Selection follows ICEA S-75-381 ampacity tables, considering rated voltage, load current, ambient temperature, and installation method. For South African mines, additional consideration should be given to higher ambient temperatures and continuous-duty cycles.

Conclusion

Type SHD-GC HIGH VISIBILITY LED mining cables represent more than an incremental improvement in trailing cable design. They embody a new approach to mobile power delivery, merging electrical engineering, polymer science, and human factors into a single integrated solution.

By combining the proven reliability of EPR insulation and soft copper conductors with the mechanical strength and transparency of reinforced TPU, and adding active illumination and ground monitoring, the design addresses the most persistent challenges in mining operations. It transforms power delivery from a hidden function into a visible, monitored, and controllable system.

For mines operating in South Africa and other mineral-rich regions, the benefits are clear: fewer accidents, longer service life, reduced maintenance, and lower total cost of ownership. As the industry continues to prioritize safety and operational efficiency, this type of cable will become the standard choice for modern mobile equipment.
