Introduction

In South Africa and across Southern Africa, reliable low‑voltage power distribution is the backbone of every sector — from municipal services and commercial buildings to heavy manufacturing and surface mining operations. However, the region presents some of the most demanding operating conditions in the world: ambient air temperatures often exceed 40 °C in summer, soil temperatures can reach 25 °C, solar radiation is intense year‑round, humidity fluctuates sharply between dry seasons and heavy rains, and industrial environments frequently expose cables to oils, greases, dust, and vibration. Under these conditions, standard cables with PVC insulation often degrade prematurely, suffer from reduced current capacity, or develop insulation faults that lead to costly downtime and safety risks.

This is where the RETFLEX N2XY 0.6/1 kV Multi‑core Cable with Insulated Grounding Conductor stands out. Manufactured by INDECO, part of the global Nexans Group, this cable is not just another standard product — it is a carefully engineered solution designed specifically to balance electrical performance, mechanical flexibility, environmental resistance, and long‑term economy. At its core lies a proven “golden combination”: Class 5 flexible copper conductors, cross‑linked polyethylene (XLPE) insulation, and a robust PVC outer sheath, plus a fully insulated separate earth core. This structure enables it to operate safely and efficiently where ordinary cables struggle.

This article provides a detailed technical overview of the RETFLEX N2XY, explaining its design principles, material science, electrical and mechanical characteristics, compliance with international and local standards, and real‑world performance in South African installations. It also compares its advantages over traditional cable types, offers practical selection guidance, and introduces equivalent alternatives suitable for African project requirements.

Basic Technical Specifications & International Standards

Understanding the specifications and standards behind the RETFLEX N2XY is essential for engineers, consultants, and procurement teams. Every dimension, material, and test requirement is defined to ensure consistent performance across all operating environments.

General Electrical and Physical Ratings

From the official Nexans datasheet, the key parameters are clearly defined:

Rated voltage: U₀/U = 0.6/1 kV; maximum system voltage Uₘ = 1.2 kV
Conductor type: High‑purity annealed soft copper, Class 5 flexible construction according to IEC 60228
Insulation: Cross‑Linked Polyethylene (XLPE)
Grounding conductor: Same construction as phase cores — Class 5 copper with XLPE insulation
Outer sheath: Flexible, flame‑retardant, UV‑stabilized PVC compound
Available cross‑section range: 4 mm² up to 300 mm²
Standard configurations: 2‑core, 3‑core, 4‑core, each with a separate insulated earth conductor
Maximum continuous operating temperature: 90 °C
Short‑circuit temperature rating: 250 °C, for a maximum duration of 5 seconds
Dielectric strength: 3.5 kV AC, applied for 5 minutes between conductors
Water resistance: Class AD8 immersion grade
Flame performance: Complies with IEC 60332‑1‑2 and UL 2556 FT1
Marking: METRIUM sequential length marking on the sheath, allowing accurate on‑site measurement and cutting
Packaging: Supplied on non‑returnable wooden reels, protected for transport and storage

Compliance and Testing Standards

The cable is designed and tested to the most widely accepted international specifications, which align directly with South Africa’s SANS standards, making it fully acceptable for local projects:

Product Construction Standards

IEC 60228 / NTP‑IEC 60228: Defines conductor dimensions, resistance, and flexibility classes
IEC 60502‑1 / NTP‑IEC 60502‑1: Specifies construction, insulation thickness, and overall dimensions for extruded‑insulation cables up to 3 kV

Performance Testing Standards

IEC 60332‑1‑2: Vertical flame propagation test — confirms the cable does not sustain combustion
IEC 60811‑401: Thermal ageing resistance — verifies insulation stability after long‑term heating
IEC 60811‑402: Water absorption test — ensures no harmful moisture penetration
IEC 60811‑409: Mass loss test — confirms insulation and sheath materials do not degrade excessively under heat
IEC 60811‑504 / 505 / 506: Low‑temperature flexibility, elongation, and impact resistance — suitable for cold nights and variable climates
IEC 60811‑507: Hot elongation test — confirms XLPE retains its shape at high temperatures
IEC 60811‑508 / 509: High‑temperature pressure and thermal shock resistance
UL 2556 / FT1: Additional flame and sunlight ageing tests, confirming UV stability for outdoor use

Construction Design & Material Science Principles

The performance of the RETFLEX N2XY does not come from chance — it is the result of applying fundamental electrical, thermal, and mechanical principles at every layer. Each material is chosen to perform a specific function, and the combination creates a system far stronger than its individual parts.

Layer‑by‑Layer Structure

Phase Conductors

At the very center are the current‑carrying conductors, made of Class 5 annealed soft copper. Copper is selected for its extremely high electrical conductivity — approximately 100 % IACS (International Annealed Copper Standard) — which means low resistance and minimal energy loss during operation. The Class 5 construction uses many fine strands twisted together, rather than a single solid rod. This design follows the principle of mechanical flexibility: fine strands reduce bending stress, allow the cable to navigate tight corners and conduits without damage, and resist fatigue from vibration. It also increases the surface area available for heat dissipation, improving thermal performance.

XLPE Insulation

Each conductor is surrounded by a layer of cross‑linked polyethylene (XLPE) insulation, with thickness ranging from 0.7 mm up to 1.8 mm, increasing with conductor size. This is the most critical difference between N2XY and older PVC‑insulated cables.

Polyethylene starts as a thermoplastic material, meaning it softens when heated. Through chemical or radiation cross‑linking, the linear polymer chains are bonded into a permanent three‑dimensional network. This transforms it into a thermoset material that will not melt or flow even at high temperatures. The engineering benefits are clear:

Electrical: Low dielectric constant (~2.3) and very low dielectric loss, so less energy is wasted as heat
Thermal: Stable at 90 °C continuous operation, compared to only 70 °C for PVC
Chemical: Highly resistant to water absorption, hydrolysis, and mild industrial chemicals
Ageing: The cross‑linked structure slows oxidation and degradation, extending service life.

Insulated Grounding Conductor

Unlike some cables where the earth core is left uninsulated, the RETFLEX N2XY provides a fully insulated separate grounding conductor, also using Class 5 copper and XLPE insulation. This design follows modern safety philosophy: it isolates the earth path from the phase conductors, prevents accidental contact or leakage, makes fault location easier, and reduces the risk of corrosion in wet or buried environments. It also ensures compliance with IEC and SANS wiring rules requiring clear separation of earth and live circuits.

Filler Material

Between the insulated cores, a flexible PVC compound filler is applied where needed. Its purpose is to fill the gaps between the round cores, creating a uniform circular cross‑section. This improves structural stability, prevents the cores from shifting during bending or pulling, and distributes external pressure evenly, reducing the risk of insulation damage.

Outer Sheath

The outermost layer is a black, flexible PVC sheath, formulated with stabilizers, flame retardants, and UV‑resistant additives. Its thickness ranges from 1.2 mm to 2.3 mm, depending on overall cable size. This layer acts as a multi‑functional barrier:

Mechanical: Resists abrasion, impact, and crushing during installation and use
Environmental: Blocks moisture, dust, and oils from reaching the insulation
Chemical: Rated “Good” resistance to greases, hydraulic fluids, and cutting oils
UV protection: Withstands long‑term exposure to direct sunlight without cracking or chalking, meeting UL 2556 requirements
Flame retardancy: Self‑extinguishes when the external flame source is removed, limiting fire spread

The “Golden Combination” Concept

The integration of Class 5 copper + XLPE insulation + PVC sheath is often called the “golden combination” for low‑voltage power cables. It creates a perfect balance:

Copper provides the best possible electrical conductivity
XLPE raises the thermal ceiling and improves electrical integrity
PVC delivers durable, cost‑effective environmental protection
The separate insulated earth conductor adds safety and installation clarity

This combination moves the cable beyond the limits of older designs, allowing it to perform reliably under the most demanding conditions found in South Africa and similar regions.

Performance Characteristics & Engineering Principles

The advantages of the RETFLEX N2XY can be explained by looking at the fundamental engineering principles that govern cable operation.

Electrical Performance

Low Resistance and High Efficiency

The use of Class 5 copper ensures that the maximum DC resistance at 20 °C remains well below the limits set in IEC 60228. Lower resistance means less I²R heat loss, which directly translates to lower energy bills and reduced operating temperatures.

Higher Current‑Carrying Capacity

Current rating is determined by a thermal balance: the heat generated by the current must equal the heat dissipated to the surroundings. The formula for steady‑state current is:

I = √[(T_max − T_ambient) / (R × R_thermal)]

Because XLPE allows a maximum conductor temperature of 90 °C, compared to 70 °C for standard PVC cables, the temperature difference is significantly larger. This results in a 15 % to 25 % higher ampacity for the same conductor cross‑section. For example, a 3 × 35 mm² + 1 × 16 mm² N2XY cable can carry 158 A in free air at 30 °C, while an equivalent PVC‑insulated cable would only manage around 125 A under identical conditions.

Short‑Circuit Withstand Capability

During a fault, the current surges and the conductor temperature rises rapidly. The RETFLEX N2XY is rated for 250 °C for up to 5 seconds. At this temperature, XLPE does not soften or drip, and copper retains its mechanical strength. In contrast, PVC‑insulated cables are limited to approximately 160 °C, and above this point, the insulation can melt, leading to permanent damage and risk of short‑circuit expansion.

Insulation Stability

XLPE maintains an insulation resistance of over 1000 MΩ·km even after years of operation, compared to around 20 MΩ·km for typical PVC cables. This means less leakage current, fewer ground faults, and longer service life.

Mechanical & Environmental Performance

Flexibility and Installation Ease

The Class 5 conductor and flexible materials allow a minimum bending radius of only 6 to 8 times the overall cable diameter. This is much easier to handle than rigid Class 2 cables, making installation in conduits, cable trays, and tight spaces faster and less labour‑intensive. The METRIUM length marking further speeds up work by eliminating the need for separate measuring tapes.

Water and Humidity Resistance

Rated AD8, the cable is suitable for continuous immersion and permanently damp environments. In South Africa’s rainy seasons, where humidity can exceed 90 % for weeks, this ensures the insulation remains dry and electrically sound.

Outdoor and UV Resistance

The specially formulated PVC sheath passes the UL 2556 sunlight ageing test. It does not become brittle or develop cracks when exposed to intense African sunlight, so it can be run on external cable trays or mounted on walls without additional protective covering.

Flame Safety

The cable complies with IEC 60332‑1‑2 and FT1 vertical flame tests. If a fire starts elsewhere, the cable will not propagate the flame along its length, reducing the risk of spreading fire through conduits or cable routes.

Applications & Real‑World Case Studies in South Africa

The technical specifications of the RETFLEX N2XY translate directly into solutions for the specific challenges of South African infrastructure.

Typical Operating Conditions in South Africa

South Africa’s climate and industry create a unique set of requirements:

Temperature extremes: Summer ambient air often reaches 42 °C; soil temperature at 0.7 m depth is approximately 20 °C
Humidity: High rainfall in eastern regions creates prolonged wet conditions
Solar radiation: Strong UV exposure year‑round
Industrial environments: Presence of cutting oils, lubricants, and chemical vapours
Mining sector: Surface installations require flexibility and cost‑effectiveness without heavy armouring
Regulatory alignment: Projects must comply with SANS standards, which are harmonised with IEC

Local Application Examples

Municipal Water Supply – Midvaal Water

One proven application is at Midvaal Water, where 3 × 70 mm² + 1 × 35 mm² RETFLEX N2XY cables are used to supply power to large water pump motors. The installation combines cable trays and underground conduits, with high humidity and moderate vibration. After more than five years of continuous service, inspections have shown no signs of insulation degradation, brittleness, or sheath cracking. The cable’s ability to operate safely at 90 °C provides a comfortable temperature margin even during the hottest summer days.

Manufacturing and Industrial Facilities

In machine shops and assembly plants, the N2XY supplies power to compressors, CNC machines, and ventilation systems. The sheath’s “Good” oil resistance rating means it can withstand occasional contact with cutting fluids and hydraulic oils without swelling or cracking. This reduces the risk of insulation failure in areas where maintenance is difficult.

Commercial and High‑Rise Buildings

In shopping centres, office blocks, and apartment complexes, the cable is installed inside conduits and cable risers. The flame‑retardant properties improve overall building safety, while the METRIUM marking reduces cutting errors and waste. Because it can carry more current at the same size, engineers can often select smaller cable diameters, saving space inside crowded conduits.

Mining Auxiliary Infrastructure

For surface lighting, control rooms, and auxiliary power circuits in mines, the N2XY offers a cost‑effective alternative to armoured cables. Since it does not require steel tape or wire armouring for surface installations, it is lighter, easier to transport, and faster to install, while still providing sufficient protection against minor impacts and weather.

Why N2XY Fits African Conditions

Temperature margin: With a 90 °C rating, the conductor can operate at well below its maximum limit even at 40 °C ambient, extending insulation life
Moisture resistance: AD8 classification ensures insulation resistance remains above 100 MΩ·km after years in wet ground or ducts
UV stability: Outdoor installations require no additional wrapping or protection
Longevity: The XLPE insulation’s ageing profile follows the Arrhenius principle — every 8 °C reduction in operating temperature doubles the expected service life. This means N2XY can easily reach 30 years or more, compared to 15–20 years for PVC cables

Technical Data & Selection Guide

Choosing the correct cable size is critical for safety and efficiency. Below is a summary of key data from the official Nexans datasheet, covering the most common configurations used in Southern Africa.

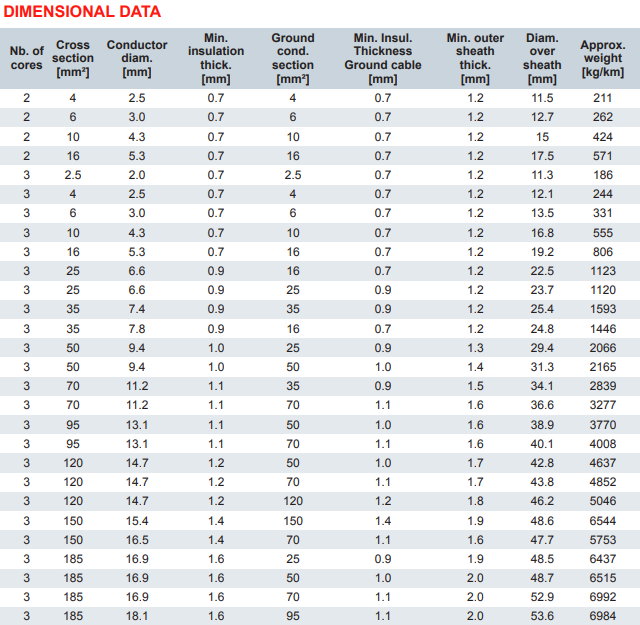

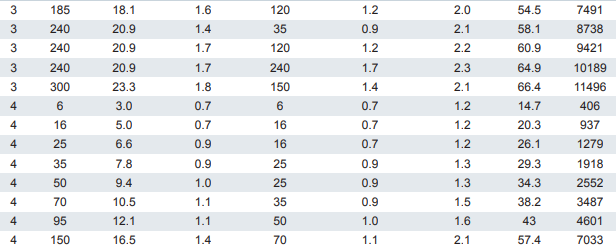

Dimension and Weight Overview

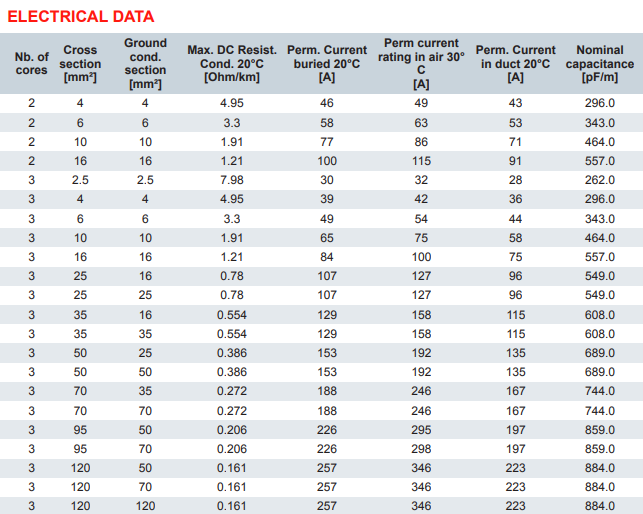

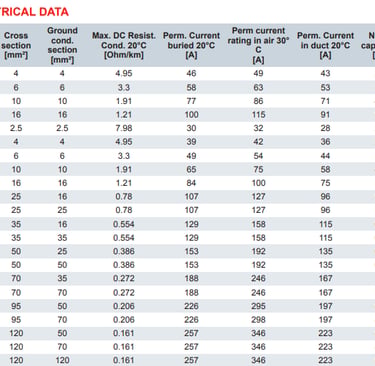

Electrical Ratings

These values are calculated according to IEC 60364‑5‑52, which is the basis for SANS wiring rules in South Africa.

Installation Guidelines

Minimum bending radius: 6 × D for fixed positions, 8 × D during installation
Maximum laying depth: Up to 0.7 m
Thermal resistivity assumption: 2.5 K·m/W, standard for most South African soils
Temperature correction factors: If ambient exceeds 30 °C or soil is warmer than 20 °C, apply derating factors as per IEC 60364‑5‑52

Equivalent Alternative: Feichun Brand N2XY‑Type Cable

While the original Nexans RETFLEX N2XY is widely available, many projects in Southern Africa look for reliable alternatives that meet the same specifications but offer better lead times and pricing. The Feichun N2XY‑type cable is designed to match or exceed the original performance.

Compliance and Performance Equivalence

Feichun manufactures its N2XY‑equivalent cables strictly to the same standards:

IEC 60228 conductor dimensions and resistance
IEC 60502‑1 construction and insulation thickness
IEC 60332‑1‑2 flame resistance
IEC 60811 series for thermal, mechanical, and environmental testing

The construction is identical: Class 5 flexible copper, XLPE insulation, separate insulated earth, and UV‑resistant PVC sheath. The electrical ratings — 0.6/1 kV, 90 °C continuous, 250 °C short‑circuit — are exactly the same, as are the ampacity values and environmental classifications.

Benefits for South African Projects

Cost‑competitive: Typically 15 %–25 % lower in price than premium European brands
Faster delivery: Optimised supply chains reduce lead times from weeks to days
Full documentation: Test reports and certificates available for engineering approval
Same reliability: Tested in independent laboratories to confirm compliance with IEC and SANS requirements

Frequently Asked Questions

Can the RETFLEX N2XY be installed outdoors without additional protection?

Yes. The UV‑stabilised PVC sheath is specifically formulated to withstand direct sunlight and will not degrade under normal outdoor conditions, as confirmed by UL 2556 testing.

Is it suitable for direct burial in soil?

Yes. With its AD8 water resistance and robust sheath, it can be buried directly. If the soil contains sharp stones or heavy vehicle traffic, a thin sand bed or protective conduit is recommended to prevent mechanical damage.

What is the main difference between N2XY and NYY cables?

NYY uses PVC insulation, limited to 70 °C, while N2XY uses XLPE for 90 °C operation. This gives N2XY higher ampacity, better short‑circuit performance, and a longer lifespan.

Does this cable meet South African standards?

Yes. All IEC standards used are fully harmonised with SANS specifications, making the cable acceptable for local tenders and installations.

Conclusion

The RETFLEX N2XY 0.6/1 kV Multi‑core Cable with Insulated Grounding Conductor represents a major step forward in low‑voltage power distribution technology. It is more than just a collection of materials — it is a carefully engineered system built on the principles of electrical efficiency, thermal stability, and environmental protection.

The Class 5 copper + XLPE + PVC combination delivers:

Electrical excellence: Lower losses, higher ampacity, and superior fault tolerance
Structural integrity: Layered design that protects against heat, moisture, oil, and sunlight
Long‑term economy: Higher initial purchase price is quickly offset by lower energy bills, fewer replacements, and minimal maintenance
Versatility: Suitable for every environment found in South Africa — from dry indoor offices to hot, humid industrial plants and outdoor distribution lines

For engineers and project managers, the RETFLEX N2XY offers a clear choice: a cable that will not only meet today’s requirements but continue to perform reliably for decades. When long‑term reliability, safety, and efficiency are the priorities, it stands as one of the best‑balanced solutions available.
